CNC Bending, Rolling, and Tube Forming for OEMs
At Plate 2000 Fabrication, we perform sheet bending, CNC rolling, and tube forming with high precision for repetitive series meeting the strictest tolerances.
Our equipment is designed to shape structural, aesthetic, or functional components ready for integration into OEM production lines.
We combine flexible execution with rigorous quality control to deliver ready-to-assemble bent or formed parts.
Our Technical Capabilities
CNC Bending
5 hydraulic and electric press brakes up to 440 tons
Bending lengths up to 14’ (4.27 m)
Sheet bending tolerance: ±1.5 mm linear, ±1° angular
Materials: mild steel, stainless steel, aluminum

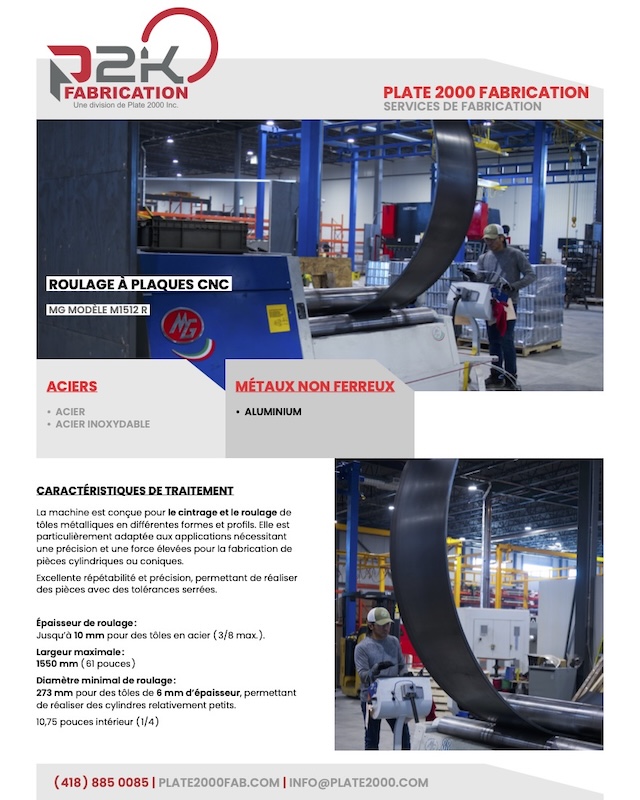

CNC Plate Rolling
Max thickness: 10 mm mild steel (⅜” max)
Max width: 61” (1550 mm)
Min. diameter: 10.75” (273 mm) for 0.24” (6 mm) thickness
Materials: steel, stainless steel, aluminum
Complex shapes: cylindrical, conical, U-shaped, pipe bends, pre-bent sections, heavy-duty forming

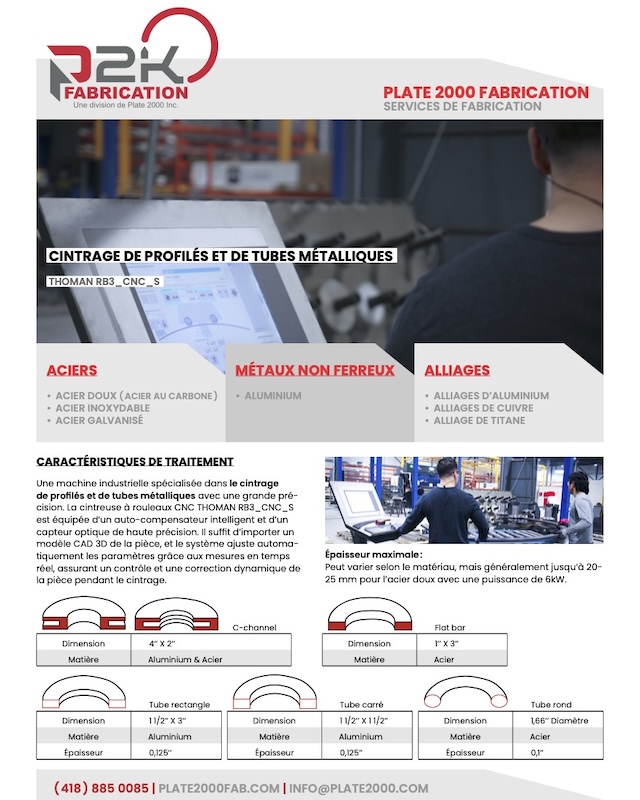

CNC Tube and Profile Forming
Tube bending: round up to 3.5”
(88.9 mm), square, rectangular
Profile types: C-channel, round, rectangular, or square tube
Materials: mild steel, stainless, galvanized, aluminum, alloys (aluminum, copper, titanium)
Types of Bent or Rolled Parts
We manufacture bent or formed metal parts for recurring production volumes, including:
Bent frames and support arms
Rolled parts for tanks, housings, piping
Bent tubes for mechanical structures or handrails
Components for construction, agricultural, vehicle, or handling systems
Why Work with Plate 2000 Fabrication
Support, throughout the manufacture of the project
Stable tolerances, even on long parts
Advanced CNC programming for series repeatability
Seamless integration with laser cutting, welding, and assembly
High-performance equipment for complex projects
Controlled lead times and planned production
Industries We Serve
Our CNC bending, rolling, and forming services are used in several industries:
Agricultural Equipment
Forestry
Medical
Looking for a CNC Metal Bending, Rolling, or Forming Partner?
We support your repetitive production of bent, rolled, or formed parts
always compliant, always delivered on time.
